Engine Oil Circuit Diagrams for BMW Airhead Boxer Engines 1970-1994

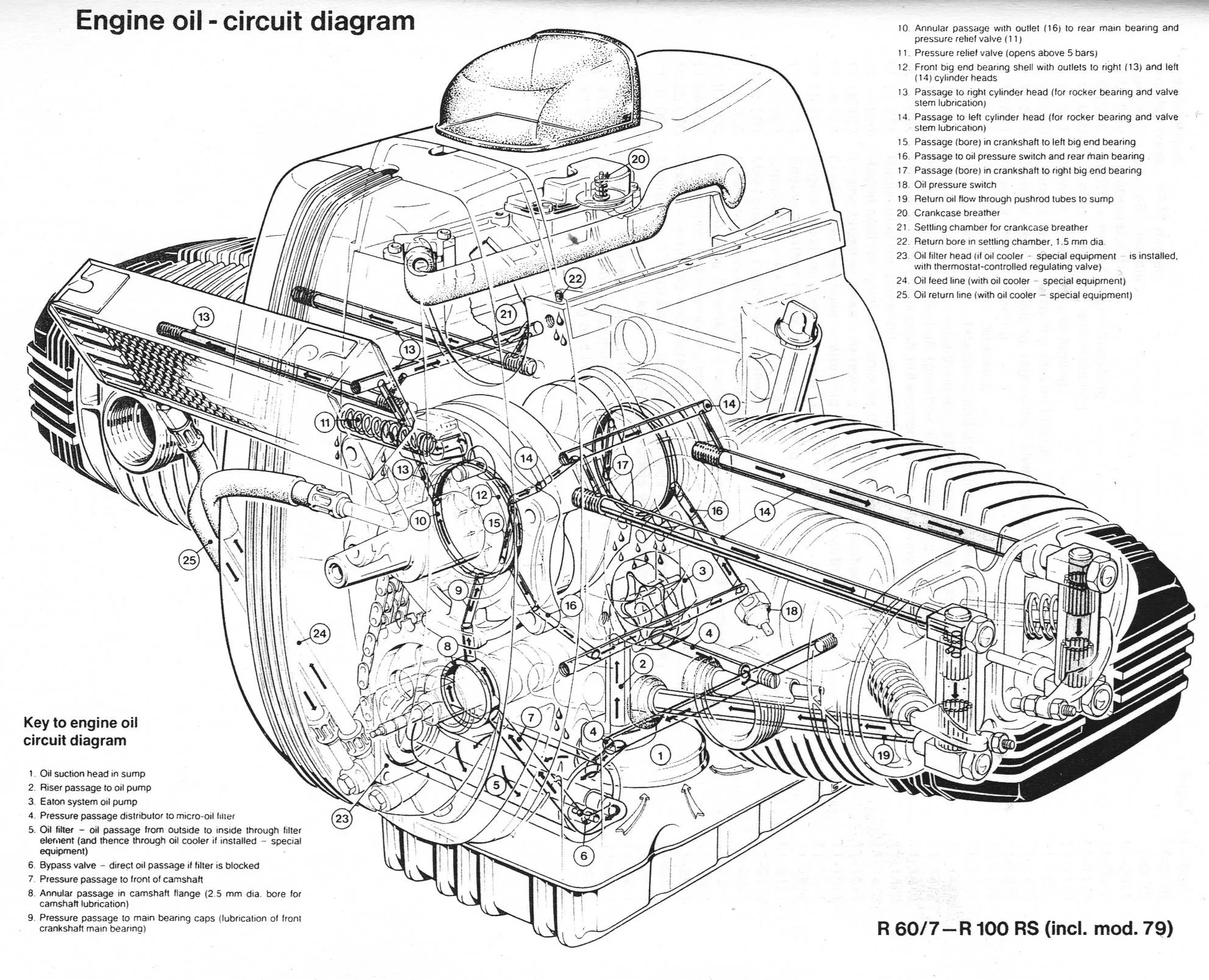

Engine Oil Circuit Diagram for BMW R60/7 - R100RS up to 1979 models.

Engine Oil Circuit Diagram for BMW R80/7 - R100RS from 1980 forward.
